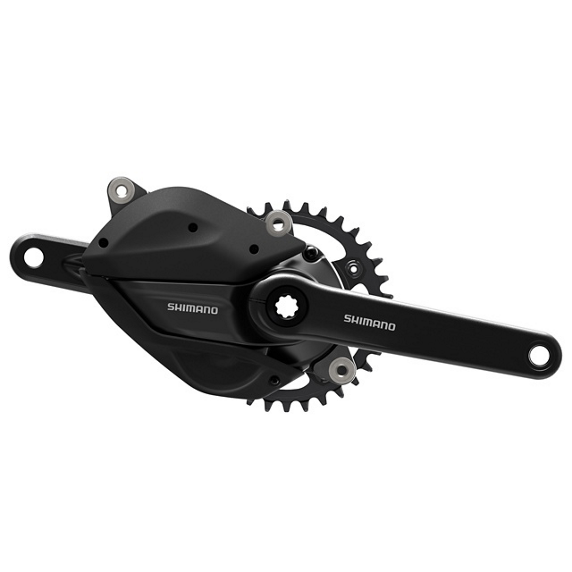

SHIMANO Drive Unit DU-EP500 (250 W 60 N·m) 2nd Generation Disc brake

Description

Artikel nummerIDUEP500
EAN nummer4550170927844
UPC nummer192790927848

Product Description

• Compact, powerful, and whisper-quiet motor with smoothly refined assist for a natural riding experience.
  » Maximum torque: 60 N·m
  » Compatible with V-brake, disc brake, roller brake, and coaster brake
  » Exclusively compatible with our second-generation Battery Management System (BMS) via EW-SD300

• Intelligent core technologies enhance the user experience with smarter functionality.
  » AUTO SHIFT improves cruising enjoyment by maintaining a consistent pace and intensity based on the rider’s input.

• Make it your own with E-TUBE PROJECT.
  » Set up to 15 unique assist profiles using FINE TUNE MODE.
  » Customize assist character, maximum torque, and assist start in BASIC MODE.
  » Provides assist up to 28 mph (US Class 3 version).

Product Specifications

• Maximum Supported Bike Speed: 25 km/h (EU) / 20 mph / 28 mph (US Class 3)

• Compatible Brake Types: Disc brake, V-brake, Roller brake, Coaster brake

• Package Type: Individual package

• Electronic Shifting (Drive Unit Control): ✔

• Torque Sensor: ✔

• Walk Assist Function (Intelligent): ✔

• Di2 Compatibility:

  • Rear Derailleur: ✔

  • Internal Geared Hub: ✔

• Crank Arm Position Sensor: ✔

• Cadence Sensor: ✔

• Bike Speed Sensor: ✔

• Compatible Wheel Size (mm): 1300–3000

• Compatible Spindle Type: 24 mm (narrow)

• Motor Type: Brushless motor

• Maximum Torque: 60 N·m

• Continuous Rated Power: 250 W

• Motor Position: Mid-drive (midship)

• Chain Device Compatible: ✔

• Power Supply for Lights:

  • Rear Light: 12 V DC

  • Front Light: 12 V DC

• Rated Voltage: 36 V DC
